BrewPi Arduino shield soldering guide for Rev A

This page will give you a step by step guide to soldering your Arduino Shield. I have soldered quite a lot of them and this is the order which I think is the easiest. It is best to keep it close to your soldering iron to make sure you don’t forget something, so here is a QR code to bring it up on your smartphone:

QR Code generator

So lets get started! You will need:

  • A BrewPi Arduino shield kit
  • A soldering iron
  • A tip cleaner (I recommend golden curl over wet sponge)
  • Solder
  • A side cutter

From now on this guide will be nothing but pictures with a description! I think pictures are much more helpful and prevent errors so this guide has a lot of pictures. To help with opening the page on portable devices it is broken up into 5 pages, 15 images per page.

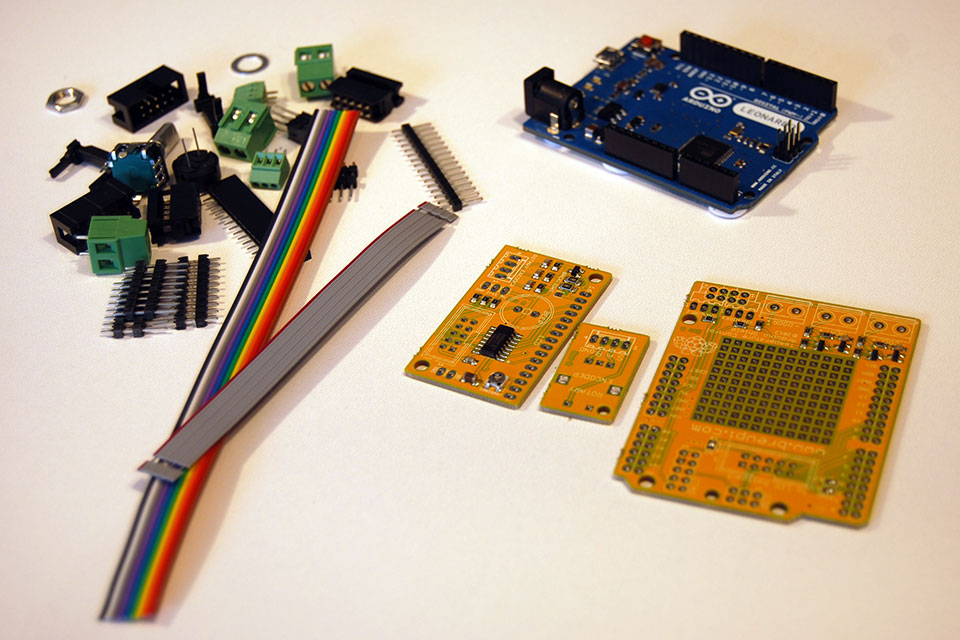

This is what you bought from the shop: a PCB with SMT components soldered and a bag of through hole parts. Go ahead and empty the bag on your desk.

This is what you bought from the shop: a PCB with SMT components soldered and a bag of through hole parts. Go ahead and empty the bag on your desk.

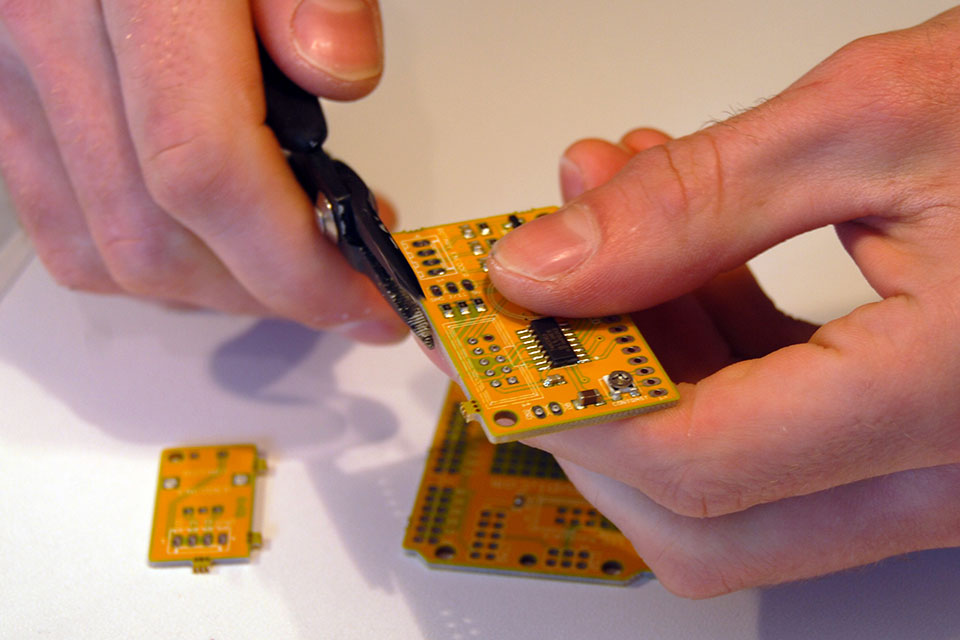

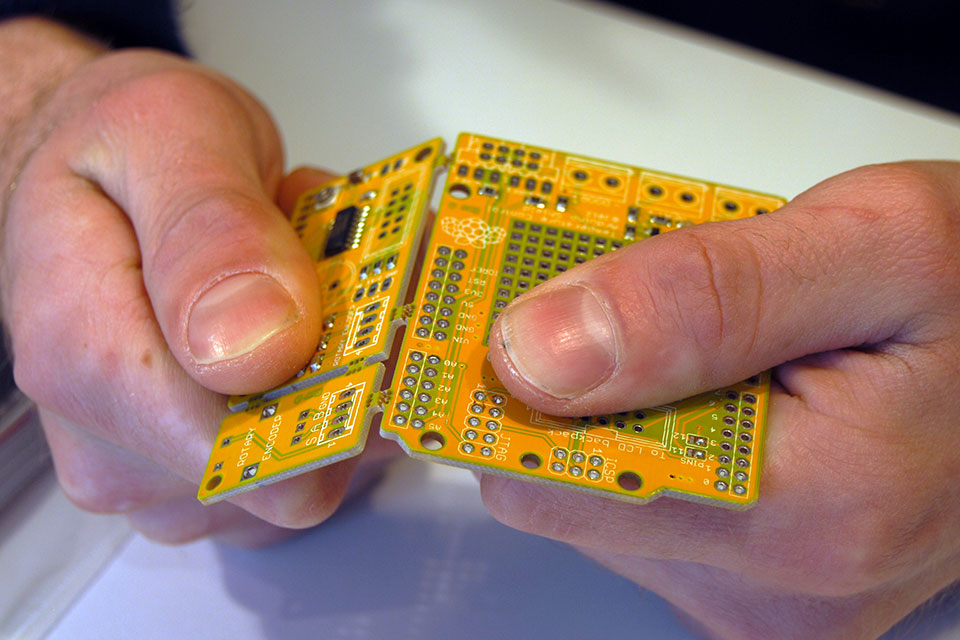

The PCB consists of 3 boards which are connected by mouse bytes. Separate the boards by breaking them.

The PCB consists of 3 boards which are connected by tabs. Separate the boards by breaking them.

Break off the mouse bytes that are left behind.

Break off the tabs that are left behind.

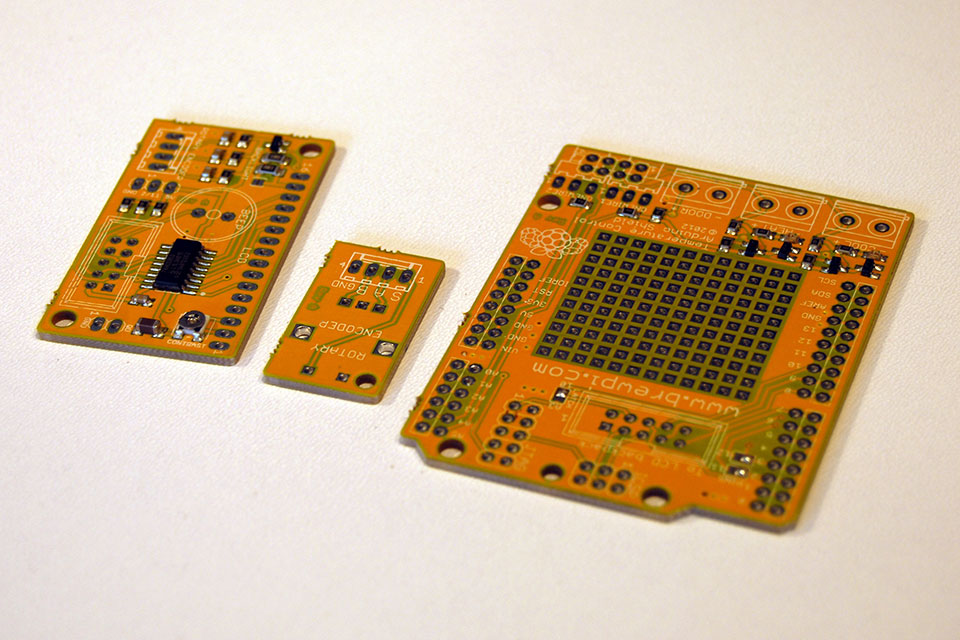

You now have 3 boards: The main shield, the LCD backpack and the rotary encoder breakout board.

You now have 3 boards: The main shield, the LCD backpack and the rotary encoder breakout board.

These boards will all be connected when you are done.

These boards will all be connected when you are done.

brewpi-soldering-10

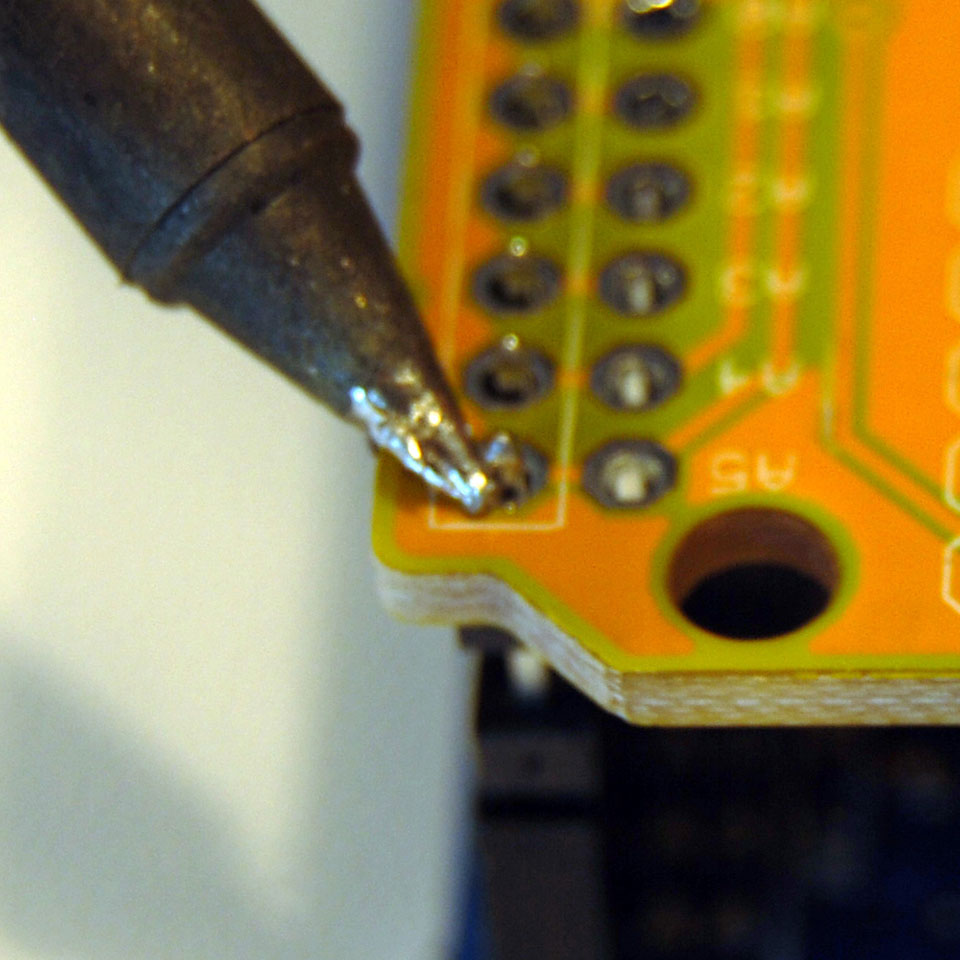

A quick primer on soldering… Step 1: press the tip of your soldering iron against both the pad and the pin.

brewpi-soldering-09

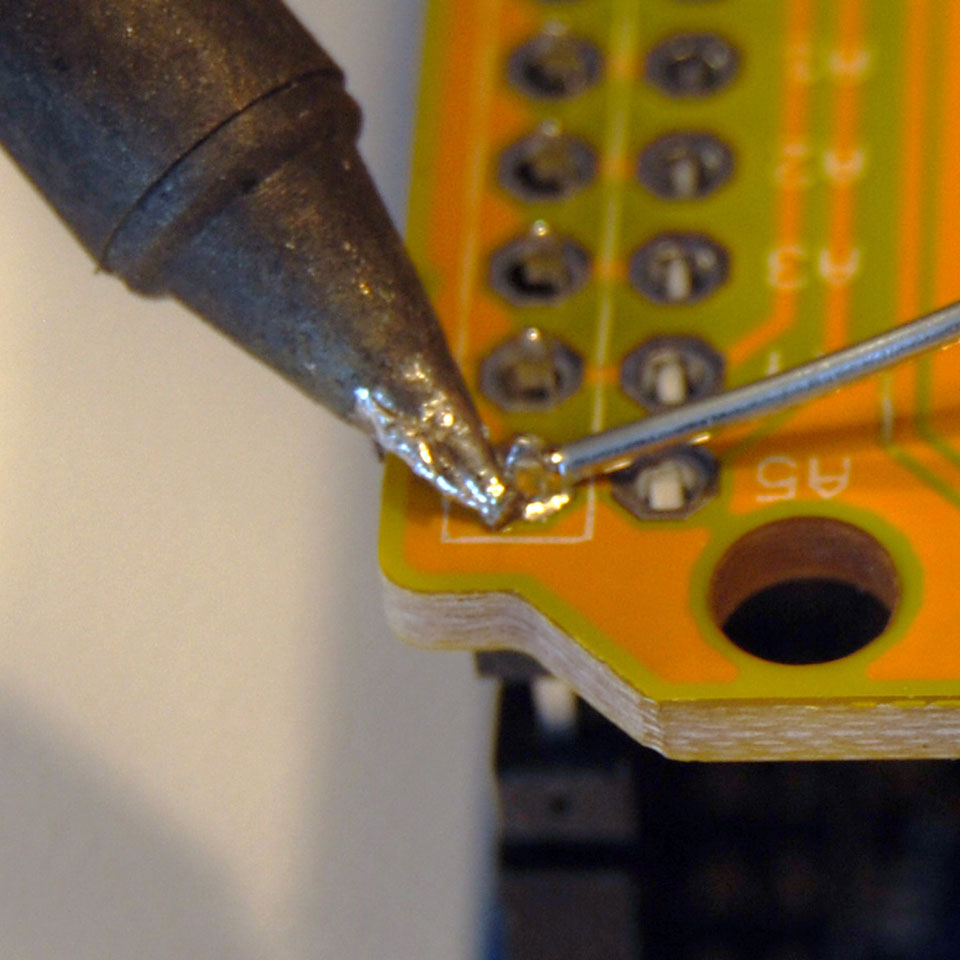

Step 2: Add solder. Do not put solder on your tip first! The flux will evaporate before you start. Push the solder against the pad/pin.

brewpi-soldering-08

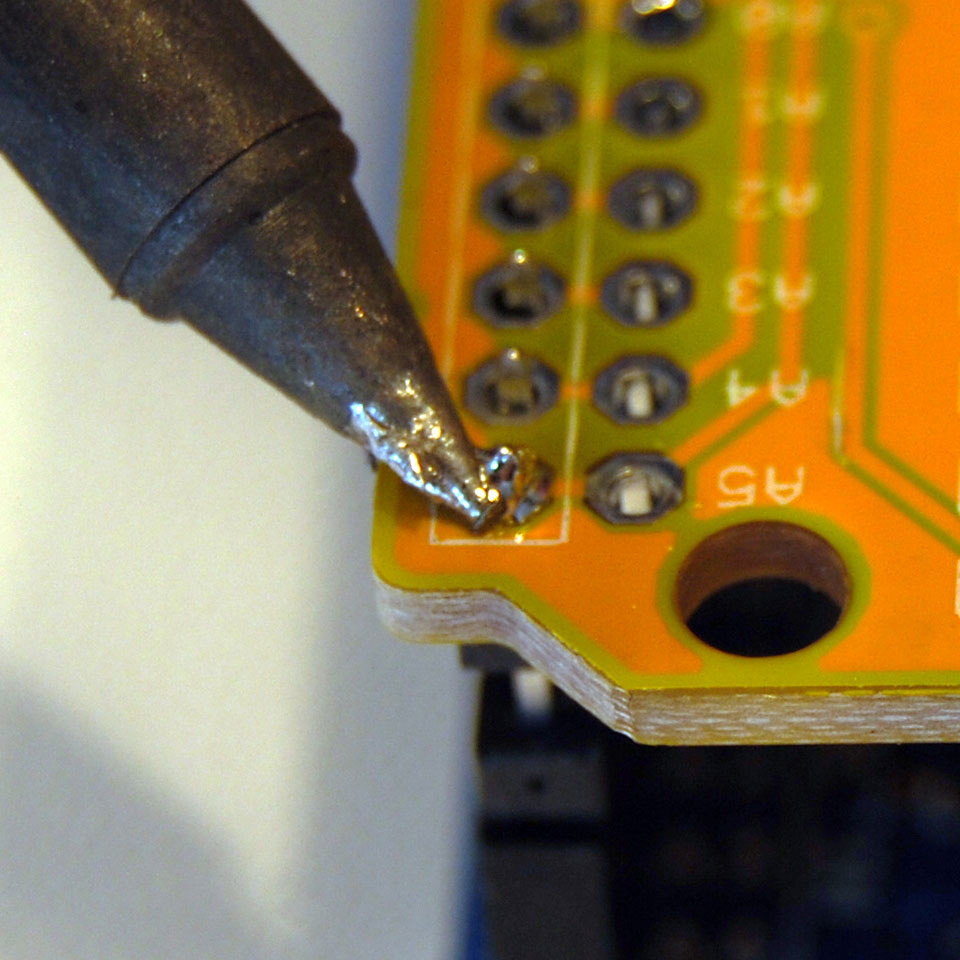

Step 3: Wait until the solder flows to the entire pad. You can add a little more solder to help if it doesn’t flow nicely, because this also adds new flux.

brewpi-soldering-07

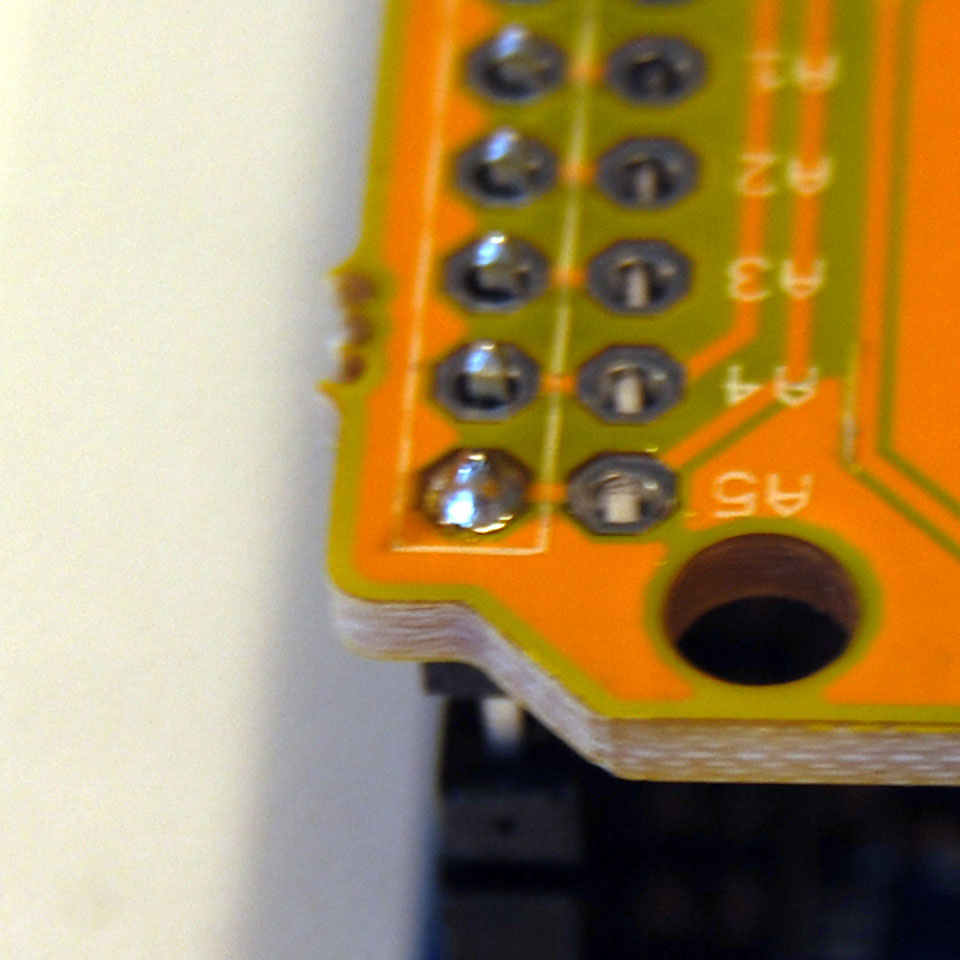

The result should be a shiny concave joint. If the joint is dull or pointy, the flux has evaporated. Work quicker or lower your soldering temperature.

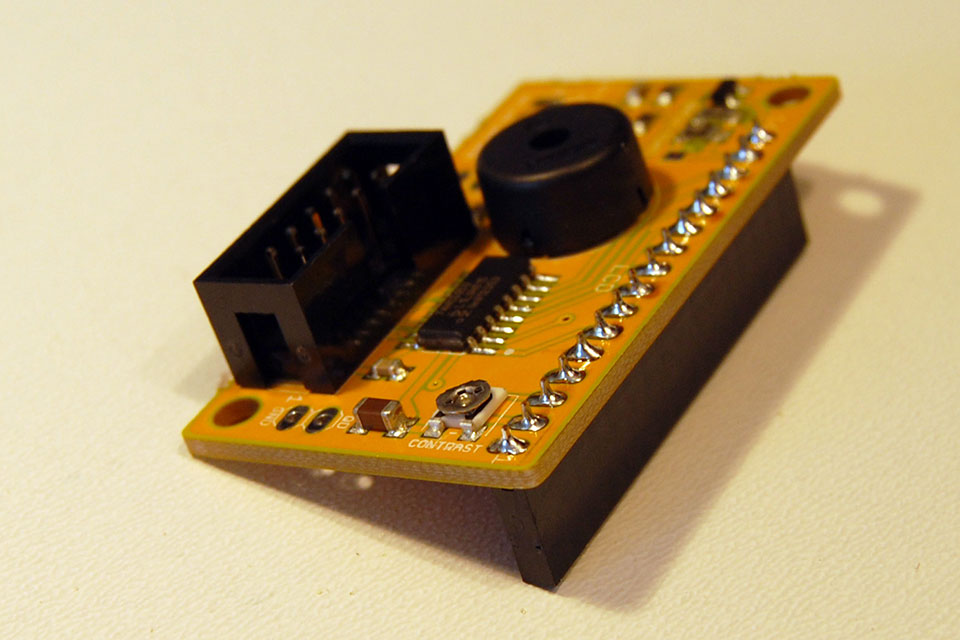

This picture is just to show you what good solder joints look like: shiny, concave and covering the whole pad. We will get to this board later.

This picture is just to show you what good solder joints look like: shiny, concave and covering the whole pad. We will get to this board later.
