Hello folks!

Previously we posted about the BrewPi case to house all the electronics. We’ve found time to update the design of the BrewPi case and we made our first prototype, what do you think?

IMG_0981

There are still some things we would like to improve or fine-tune, but so far we’re content with the case. One of the major changes is that we want to replace the snappy-hooks with a t-slot connection using a bolt and nut trap as this will be more user-friendly in terms of assembling the case.

We are selling the BrewPi Case as a DIY kit through Elco’s webshop. The kit consists of all the plastic parts and the necessary metal bolts, washers and nuts. We will soon post the final design and the instructions for assembling the kit. The kit is shipped as a flatpack in bubble wrap. We are sending the rest-material around the parts along as an extra protection.

IMG_0962

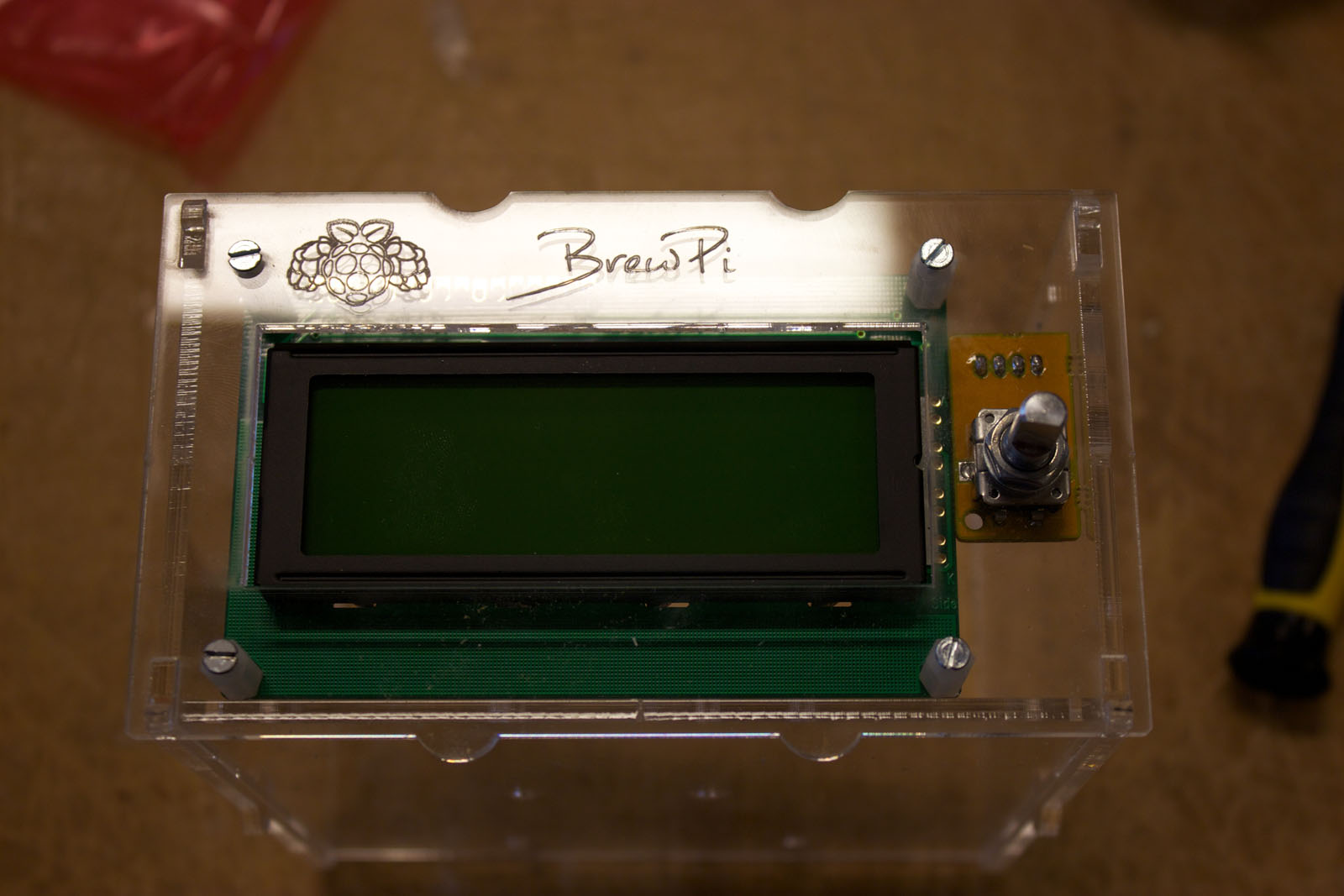

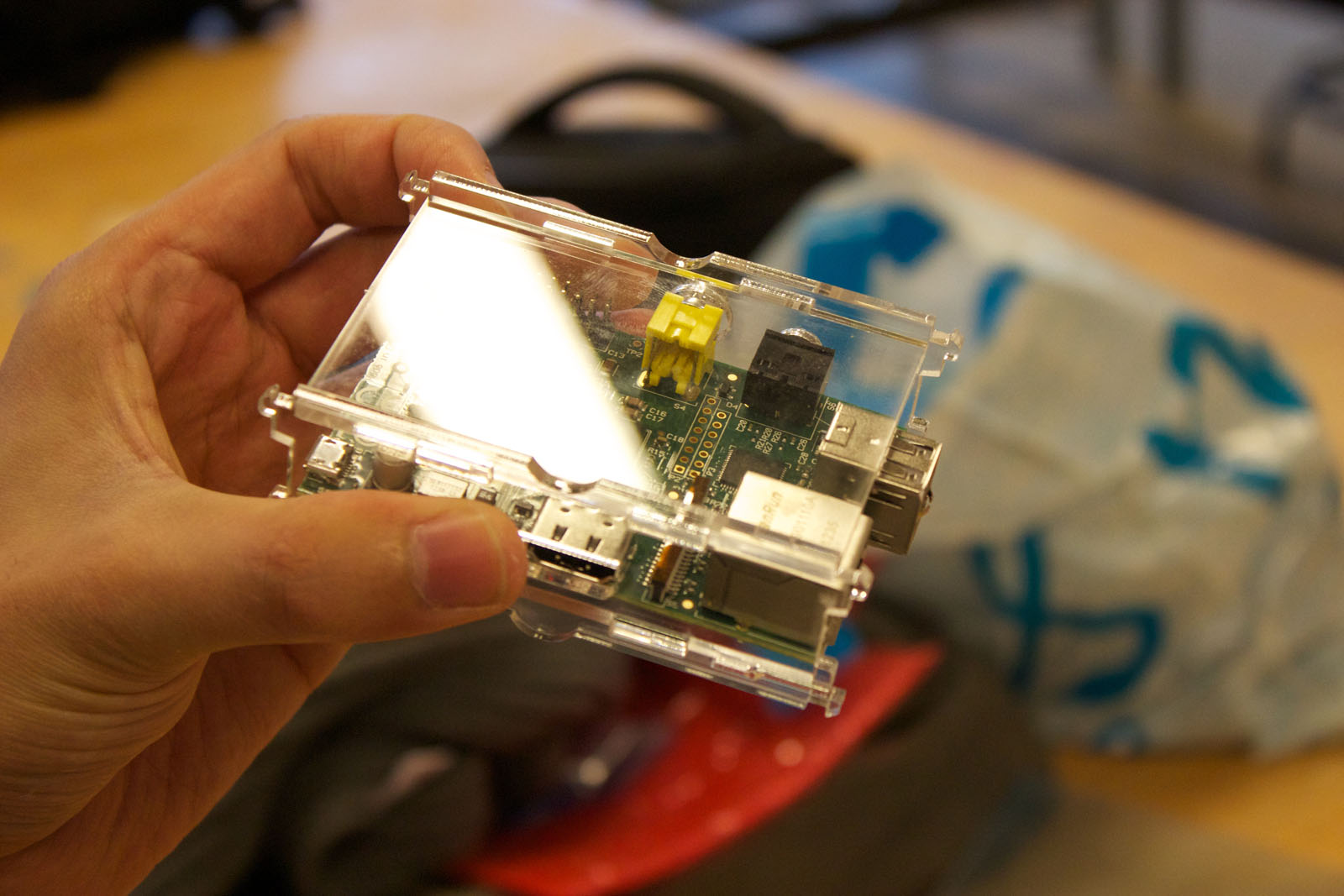

Here’s a picture of the raspberry case, the kit includes this case, you can also use it for other projects if you like. The raspberry case sits nicely on top of the BrewPi case.

IMG_0963 IMG_0964      IMG_0970

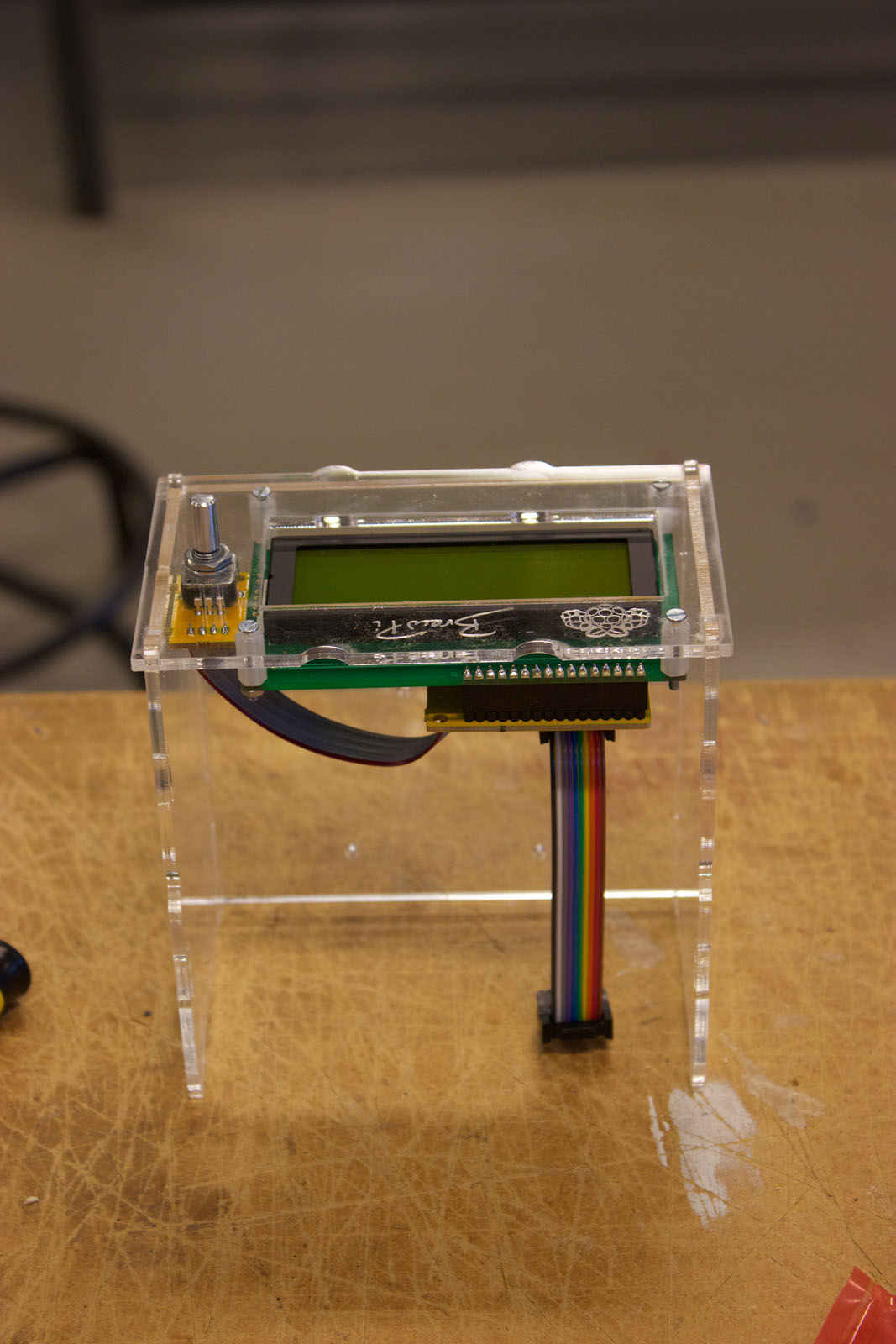

Next a picture during the assembly of the BrewPi case:

IMG_0971

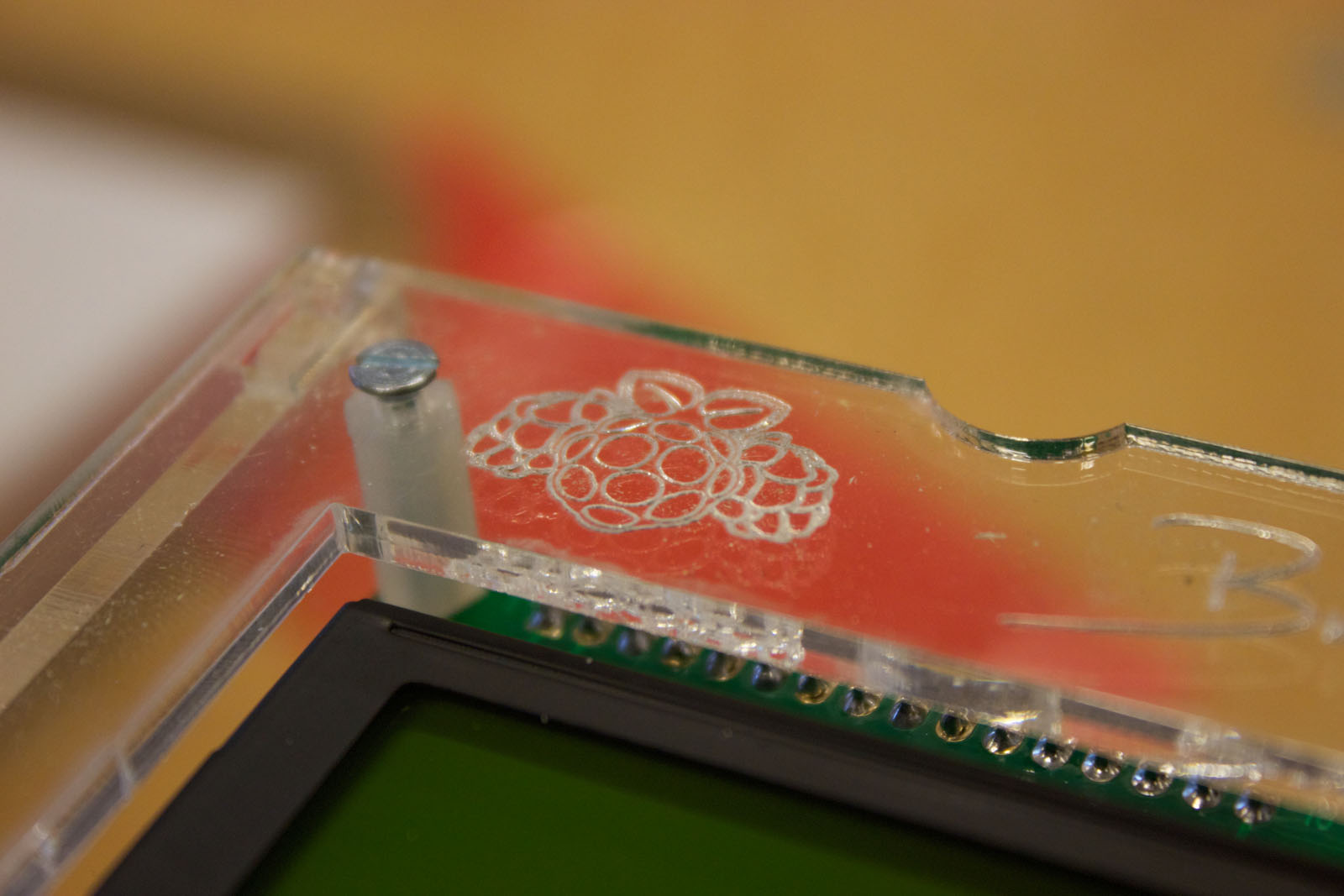

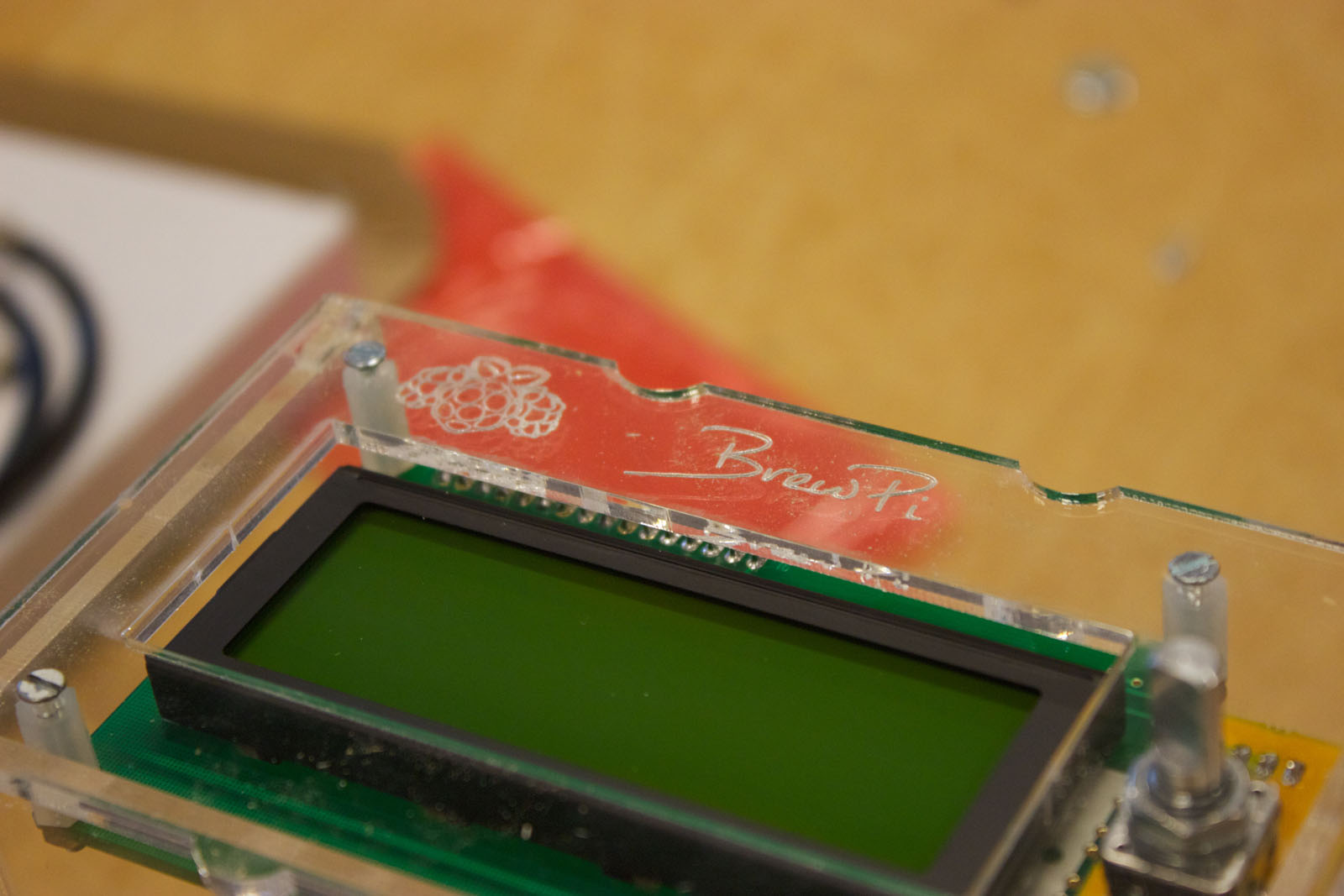

Ofcourse we etched the logo on the casing, in the final design the screen will be more flush against the casing, remember: prototype. :)

IMG_0972 IMG_0973

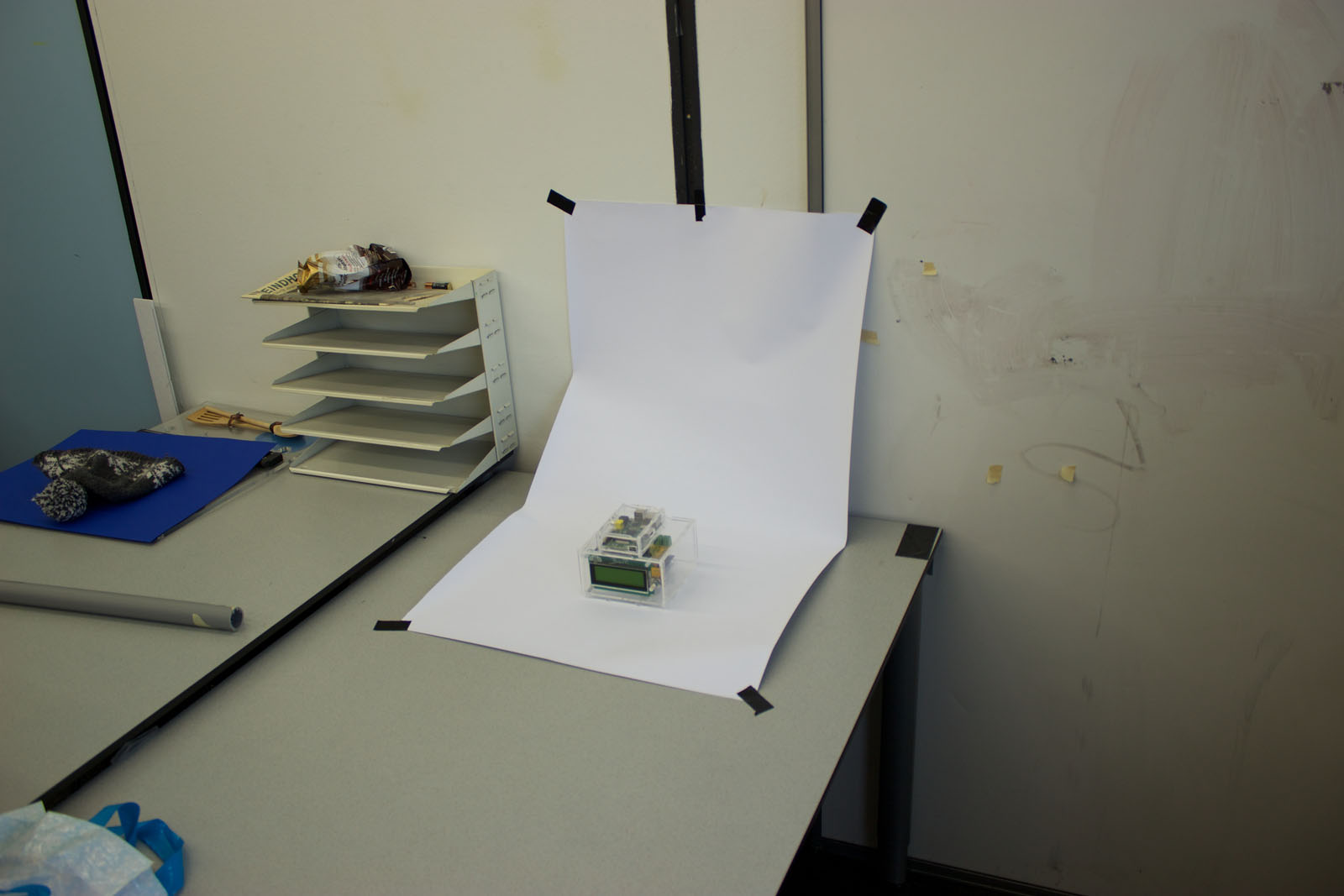

Our professional grade high-tech photo studio used for making the pictures of the case: :P Note the black looking pieces used to adjust the background, all very hi-tech. That’s how we roll.

IMG_1001

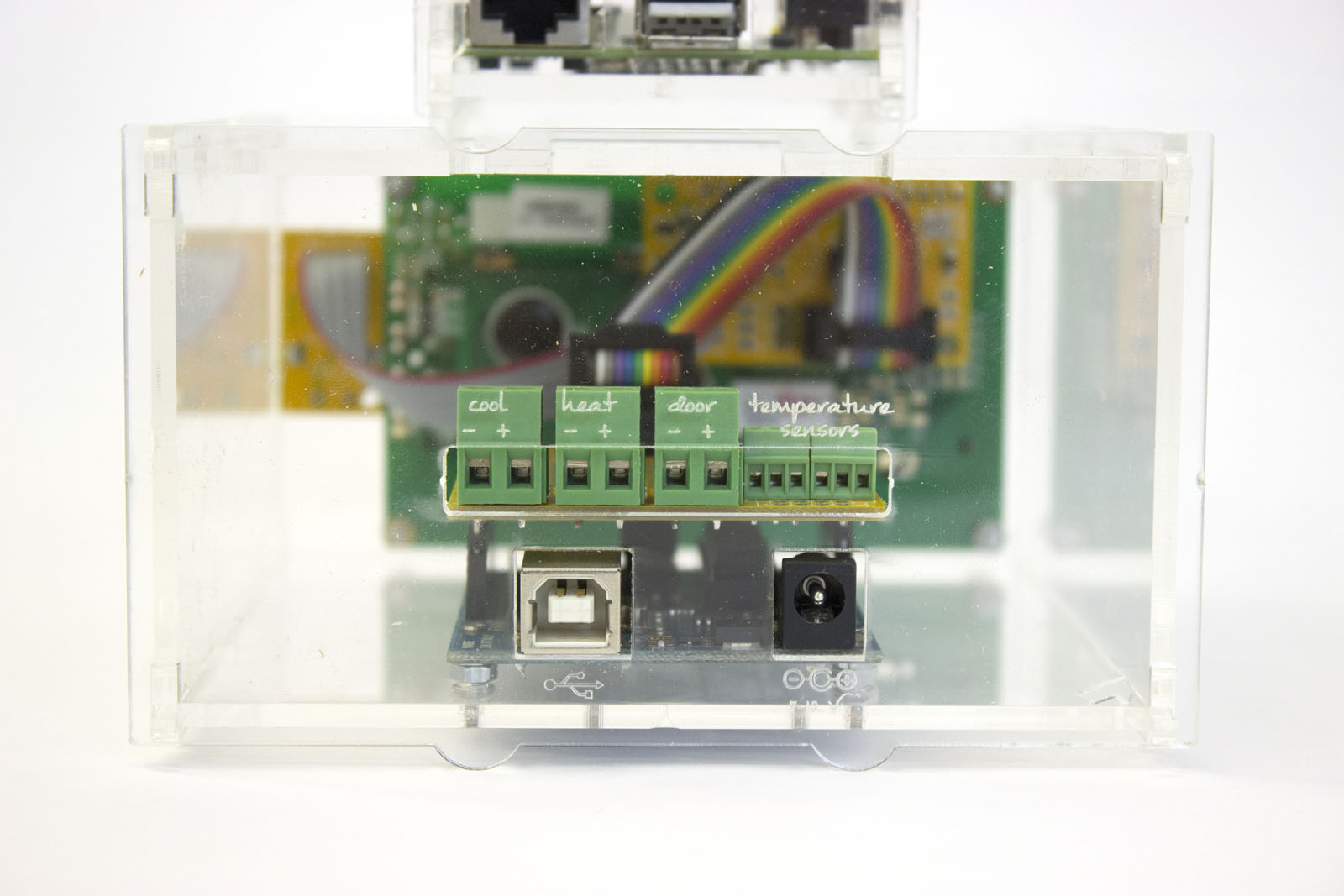

Back side of the BrewPi Case showing the different terminals for the solid-state relays and temperature sensors.

IMG_0990

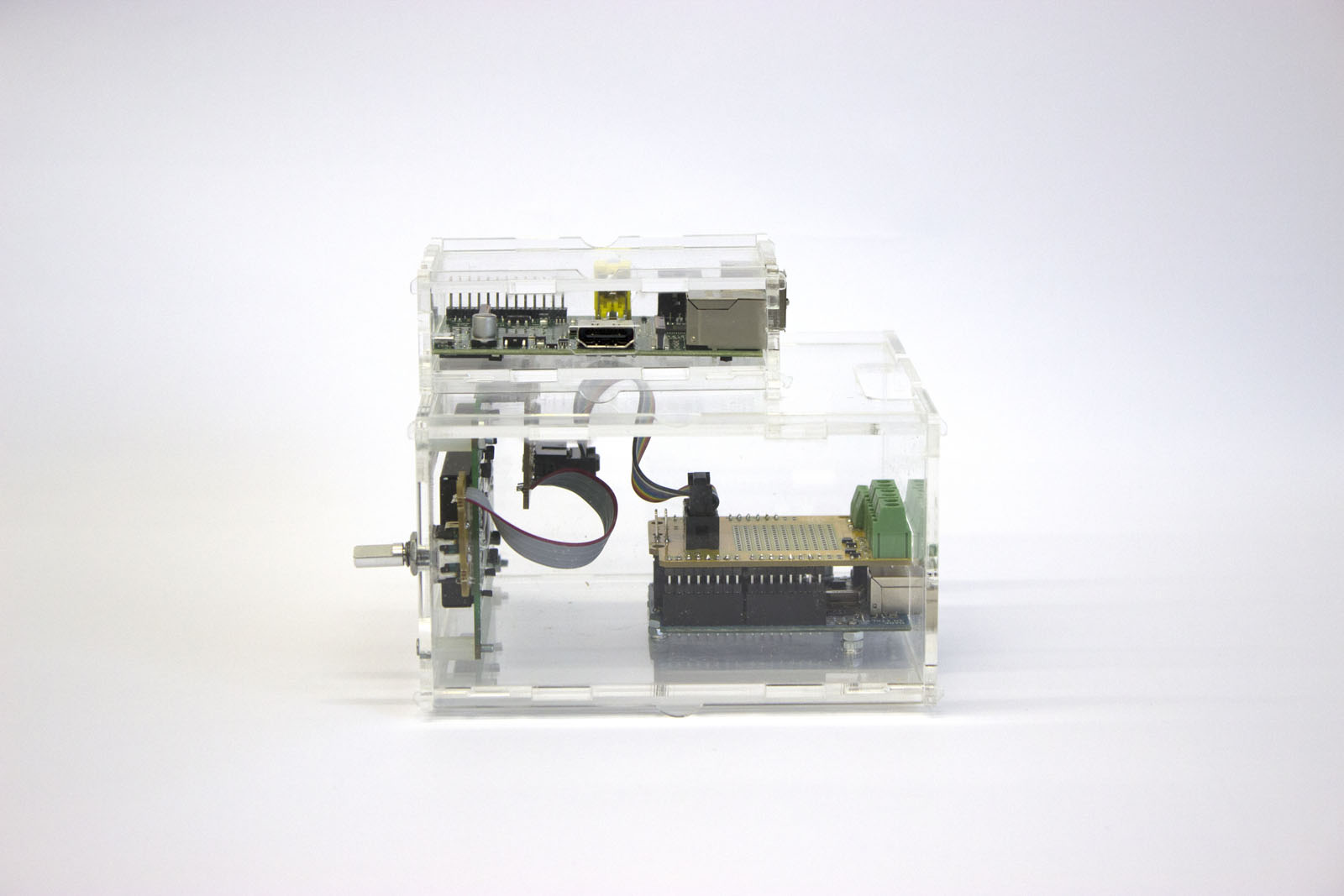

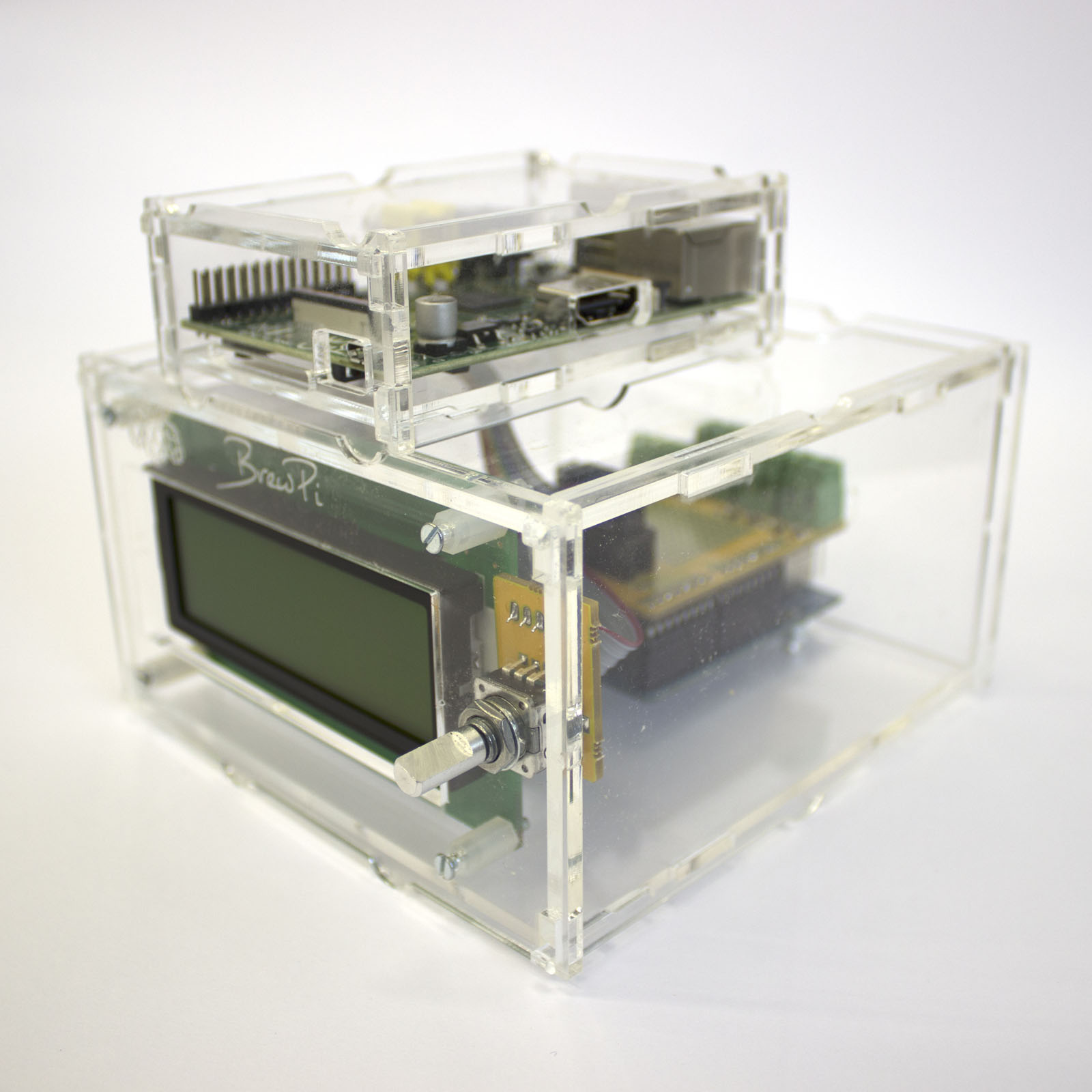

Some more picture of the BrewPi Case:

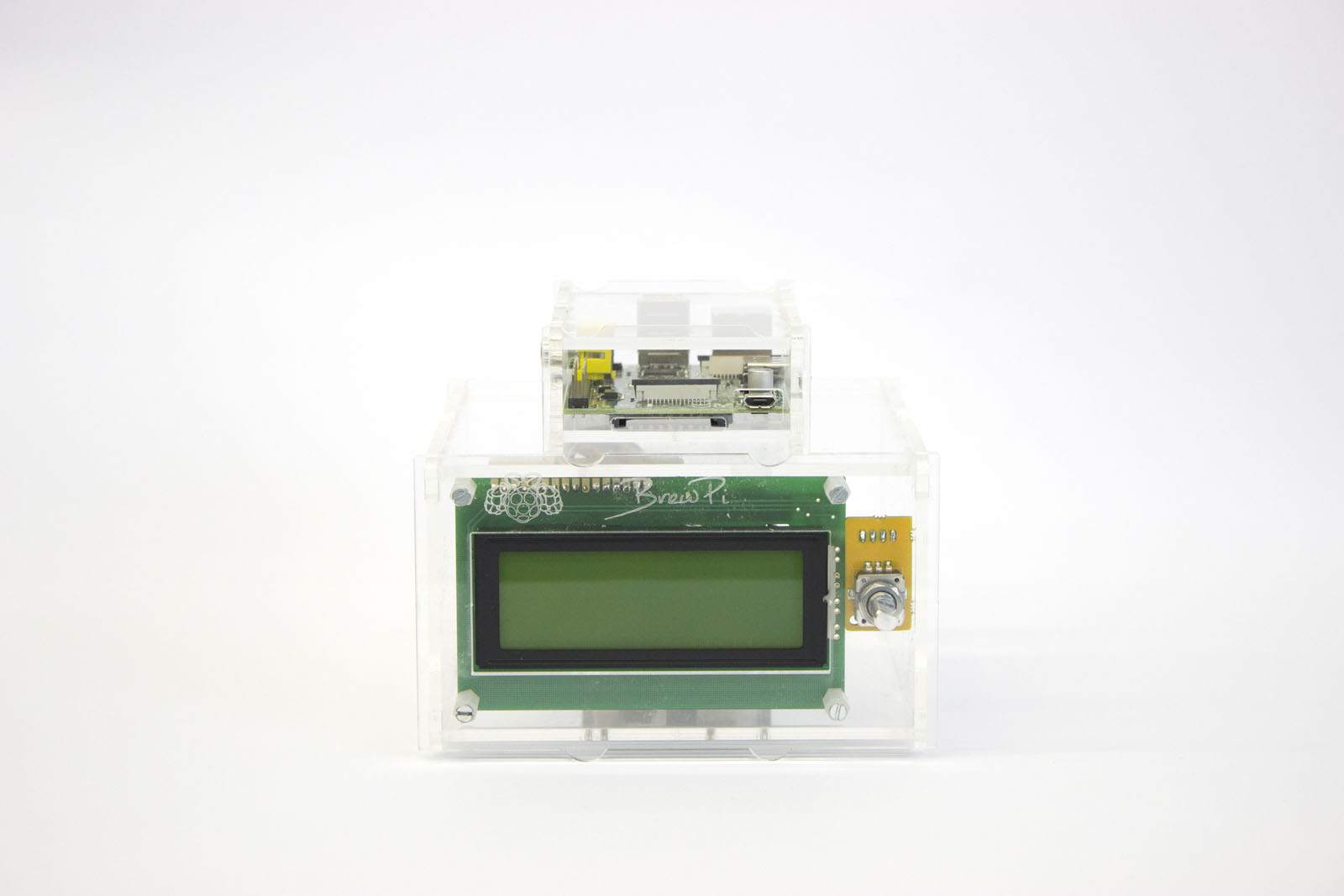

IMG_0983 IMG_0982 IMG_0985



That’s it, if you have any questions or comments we would be pleased to answer them. We will write another update in the future!

- Frits & Koen & Gijs
