BrewPi Arduino shield soldering guide for Rev A

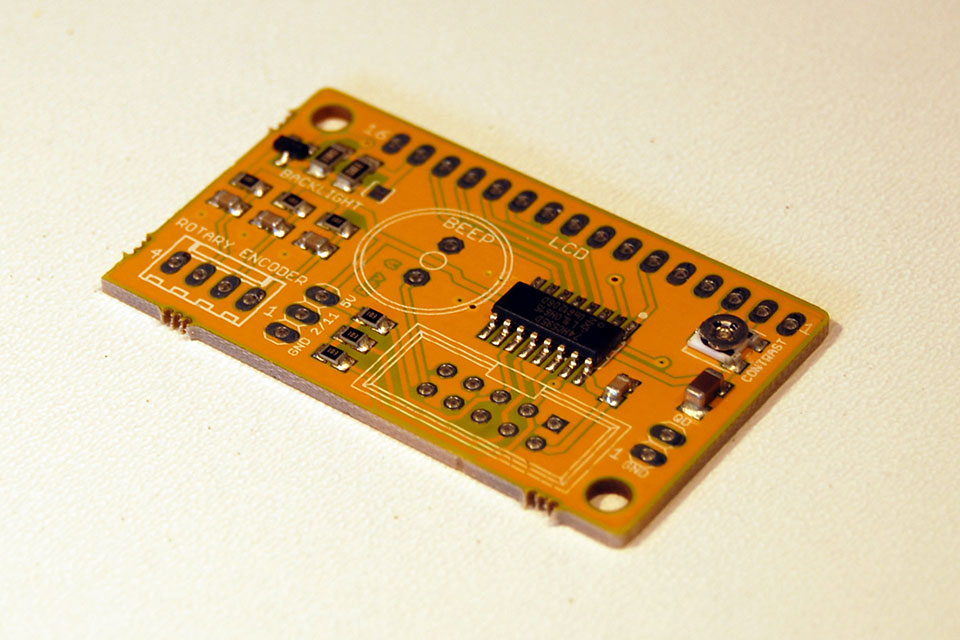

Put your main board away and grab your LCD back pack board.

Put your main board away and grab your LCD back pack board.

Insert the speaker. The orientation does not matter.

Insert the speaker. The orientation does not matter.

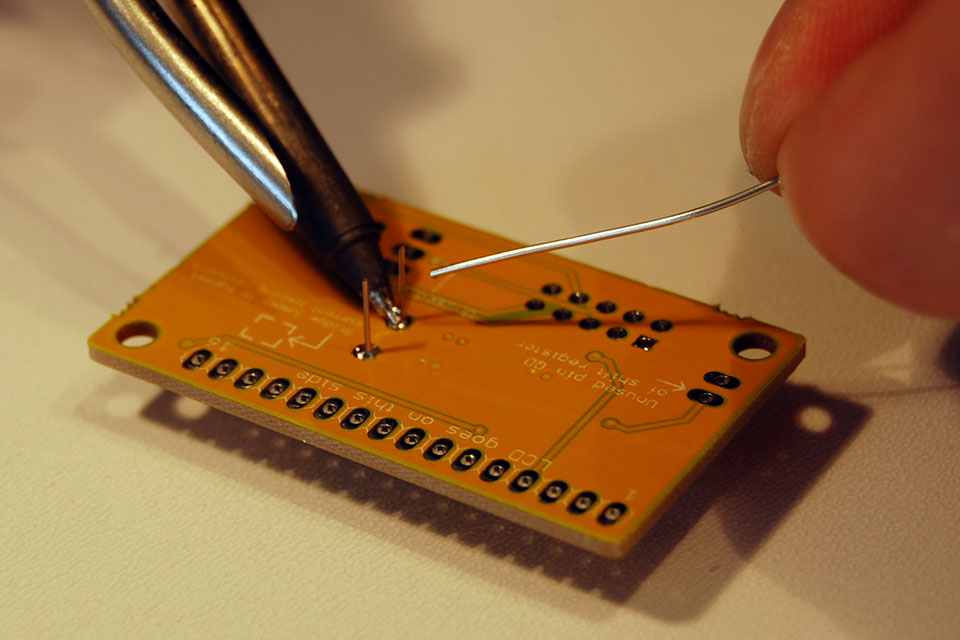

Solder both pins of the speaker.

Solder both pins of the speaker.

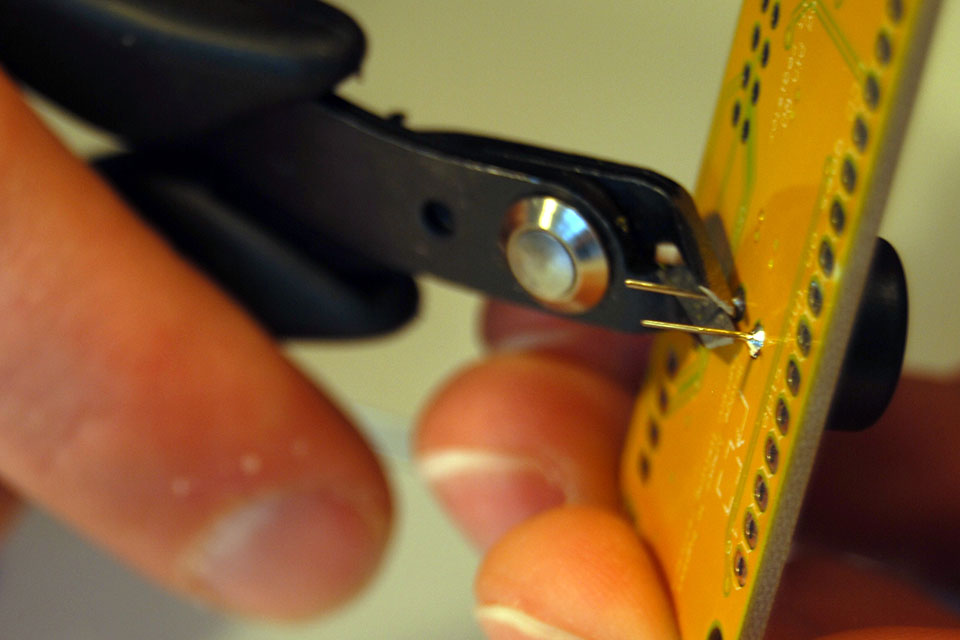

Cut the pins of with a side cutter.

Cut the pins of with a side cutter.

Next is the IDC box header. Take note of the marking on the board for the orientation. The open bit points towards the shift register.

Next is the IDC box header. Take note of the marking on the board for the orientation. The open bit points towards the middle of the board.

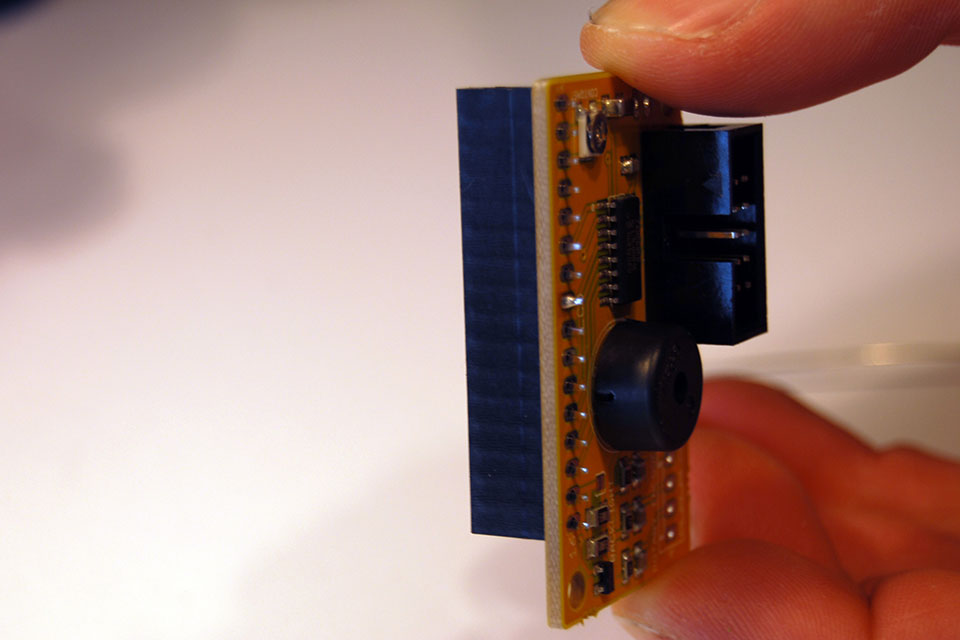

Flip the board over and solder the connector while pressing the board flat onto the connector.

Flip the board over and solder the connector while pressing the board flat onto the connector.

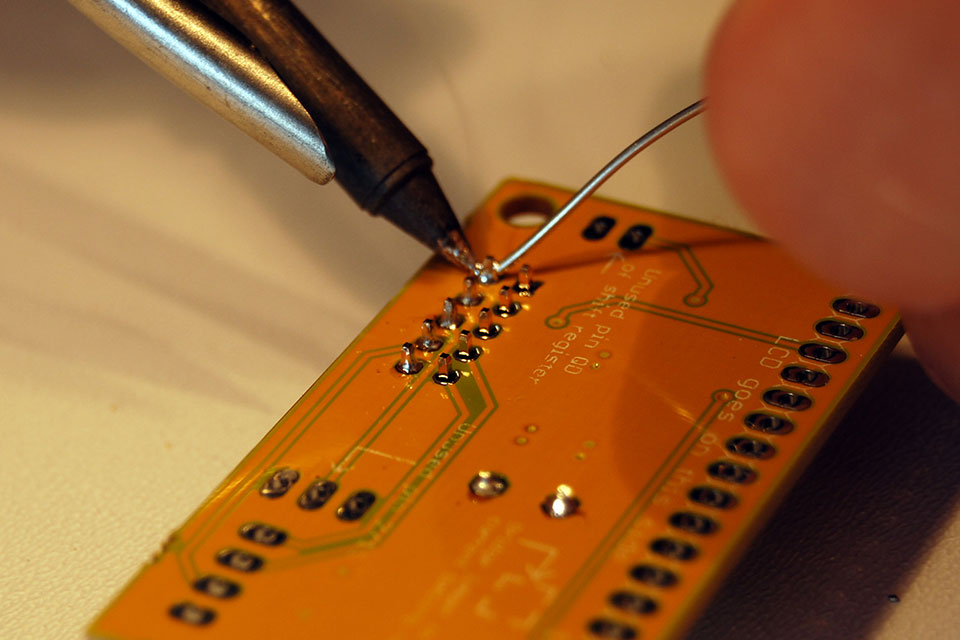

Next, solder the 16-pin female header for the LCD. It is inserted from the BOTTOM, the side that says 'LCD goes on this side'. Solder only the middle pin first.

Next, solder the 16-pin female header for the LCD. It is inserted from the BOTTOM, the side that says ‘LCD goes on this side’. Solder only the middle pin first.

Check if the alignment is straight.

Check if the alignment is straight.

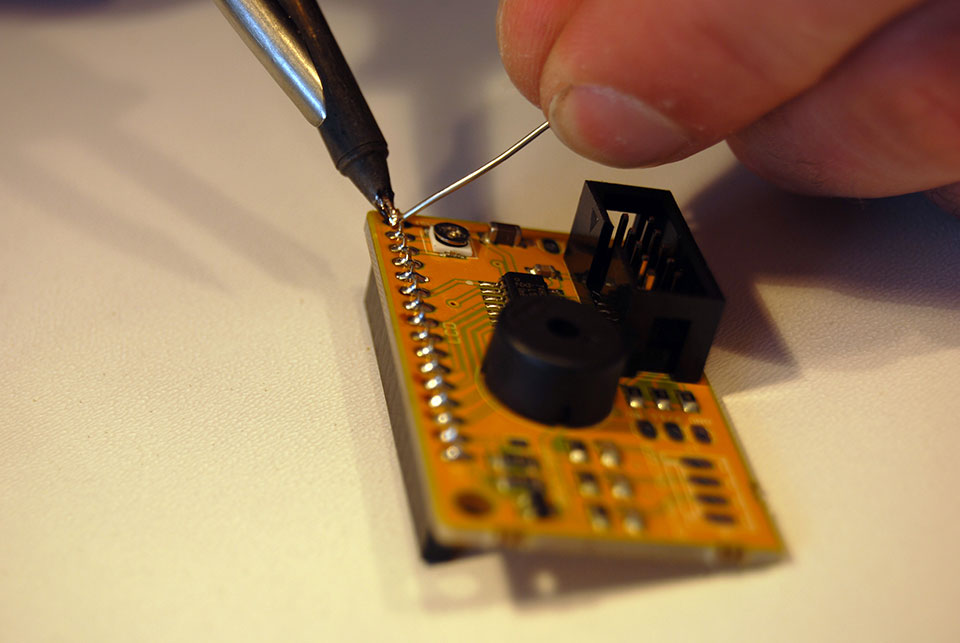

When aligned properly, you can solder the rest of the pins.

When aligned properly, you can solder the rest of the pins.

There is a trimpot on the LCD backpack to adjust the contrast of your display. If you look at it from the side, you can actually see the taper. This is the position for maximum contrast. If your display is blank, it is likely you have set the contrast to low.

There is a trimpot on the LCD backpack to adjust the contrast of your display. If you look at it from the side, you can actually see the taper. This is the position for maximum contrast. If your display is blank, it is likely you have set the contrast too low.

There is also a tiny arrow on top of the trimpot to indicate the position. Adjust it to this postion and your LCD backpack is done!

There is also a tiny arrow on top of the trimpot to indicate the position. Adjust it to this postion and your LCD backpack is done!
